Water Ingress Alarm System

SYSTEM COMPONENTS

The Water Ingress Alarm complete package includes the following components:

• Monitoring Alarm Panel (mounted on bridge)
• Main Control Card
• Battery Charger
• BACKUP Battery
• Mixture and Clean Water
• Detection cards (C.W.D.)

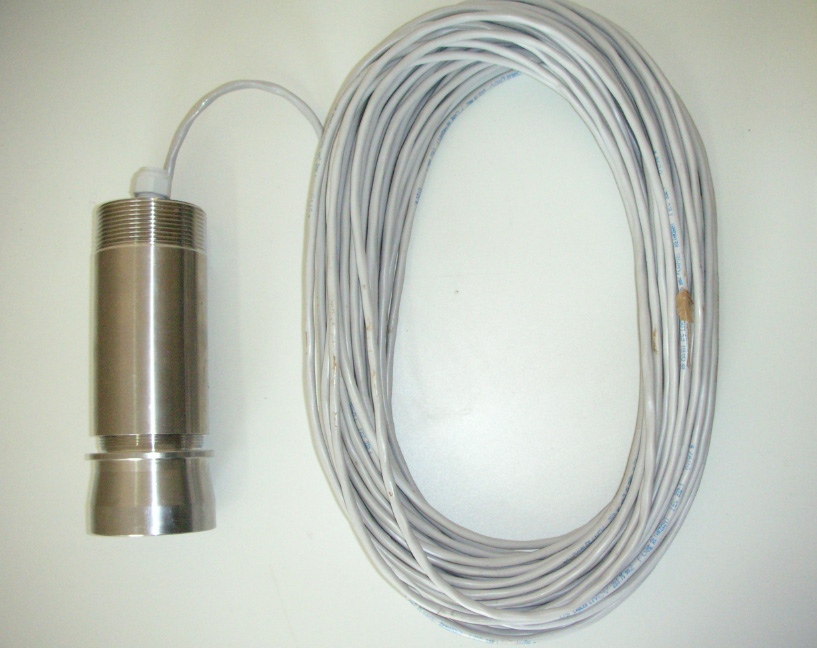

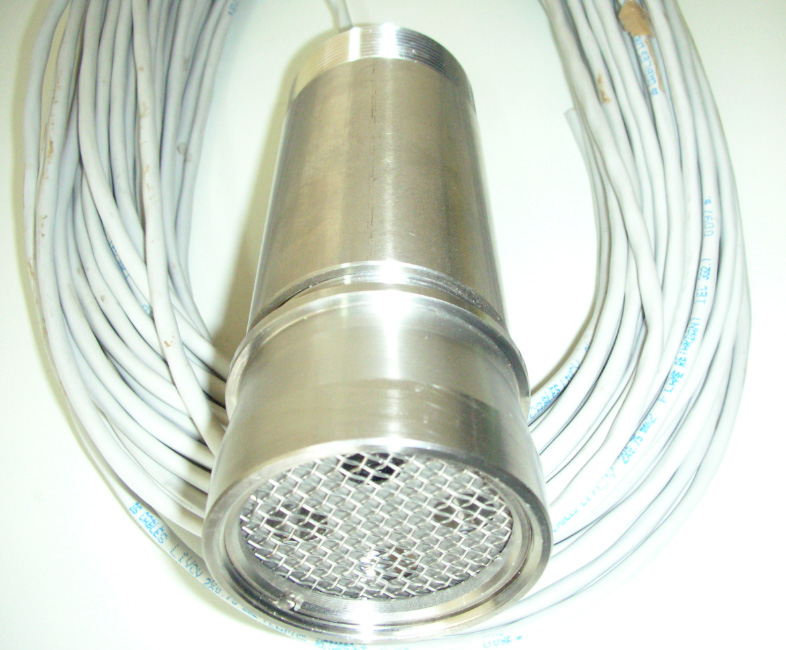

• Zener Barriers (mounted in a junction box, which is located in the accommodation area) Manufacturer: CEAG Apparatebau Hundsbach GMBH Type: SB0028 SB1250 Manufacturer OSNA electronics Type Z111 and Z318 Water Ingress Sensors (IP68 with 35m cable on each sensor).
• A maximum number of 22 sensors

When the system is powered on, it automatically starts to test itself for all the bellow listed FAULTS.

These fault alarms are in accordance with SC180.

a) Disconnected lines (sensor)
b) Short-circuits (sensor)
c) Ground Fault

Our system is completely isolated from all the vessels power supplies (24VDC, 110VAC and 220VAC) so, in case that the electrodes cables comes in touch with the vessel’s ground, the system is not affected.
